Concealed Blinds for Eaves Windows

Eaves windows sit in sloping roof planes — the blind has to run down the slope without lifting off the glass. Our eaves configuration uses angled head boxes and paired side channels to guide the fabric along the rake.

Configurations

1 Way to Conceal

Each configuration can be sized to your specific opening. See Technical Drawings and BIM files for exact details.

01 — Configuration

Concealed Blinds for Eaves Windows

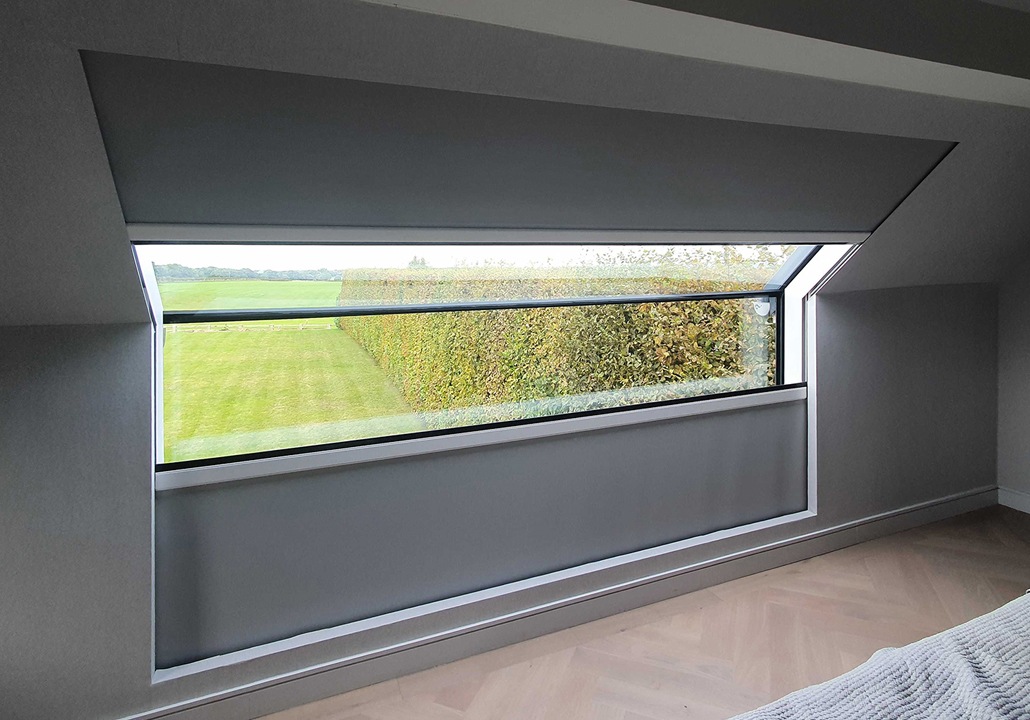

Angled head box at the top of the eaves opening with paired side channels that follow the slope to the sill.

Box angled to the slope of the roof
Side channels guide fabric down the rake
Works on pitches from around 15° to 60°
Motorised by default for user reachability

FAQ

Frequently Asked

The questions specifiers and installers ask most often when drawing up eaves windows.

Glazing that sits within the eaves/roof slope itself — typically a pitched plane between wall and ceiling. They’re often triangular, trapezoidal or long and narrow.
